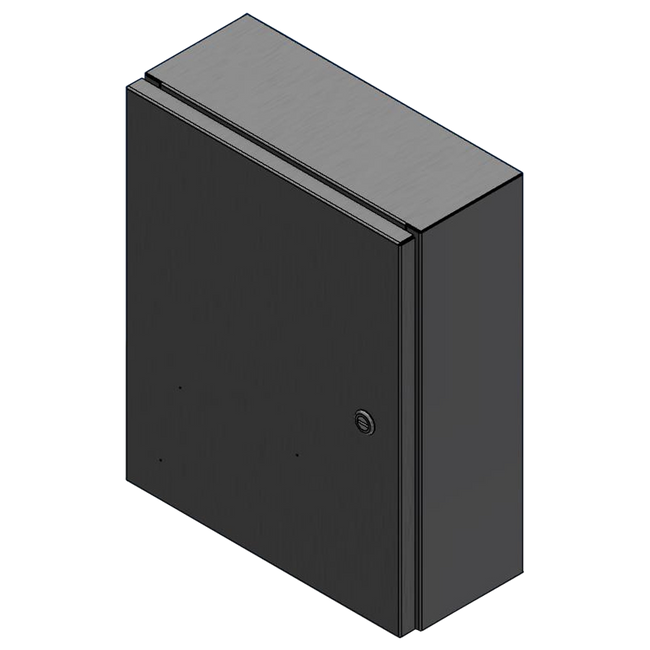

SW Series Type 4&4X
Description

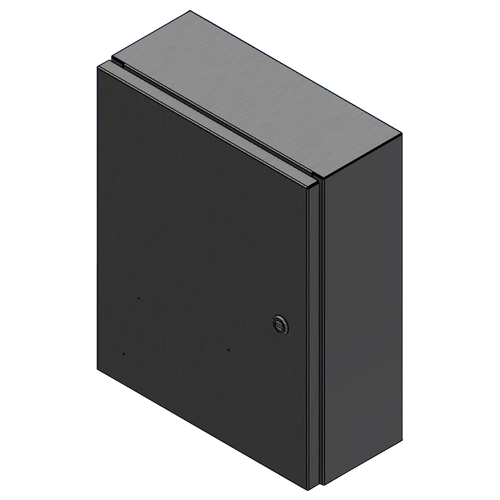

Quarter-Turn Latch Wall Mount SW-Series Enclosures are intended for any and all uses, from outdoor to indoor, wet to dry, and non-corrosive or corrosive environments that are consistently being met with the elements or other types of liquids. The SW-Series Wall Mount Enclosure has a 180 degree left-hand door hinge capability and quarter turn last inserts that are flush with slotted inserts.
| Material: |
Enclosures are constructed of sheet steel or 14 - 16 gauge stainless steel |
|---|---|
| Finish: |
Enclosures are painted with ANSI 61 gray (smooth/textured) or a #4 brushed finish. |
| Configuration: |
Single door (Type 4) & double door (Type 12) configurations with a 12 gauge mounting panel. Doors have a left hand hinge that opens to 180 degrees. Quarter turn latch insert are flush slotted. Single door configurations that are less than 20" high have one 1/4 turn latch. Single door models from 20" - 36" high have two 1/4 turn latches. Single door enclosures greater than or equal to 36" have a single handle three point latch. Double door enclosures greater than or equal to 36" have a single handle three point latch. enclosures include bolt on wall mount tabs(kit). |
| Accessories: |
Optional accessories include a MPL (carbon steel, stainless steel, or aluminum), wall mount brackets, window kits, climate control (fans, louvers, or a/c unit), dead front kits, leg stand kits, and lighting kits. |
| Modifications: |
Optional modifications per customer specification. |
DXF File
If you already know the part number for an enclosure, search for it in the table below to download the associated DXF file.
